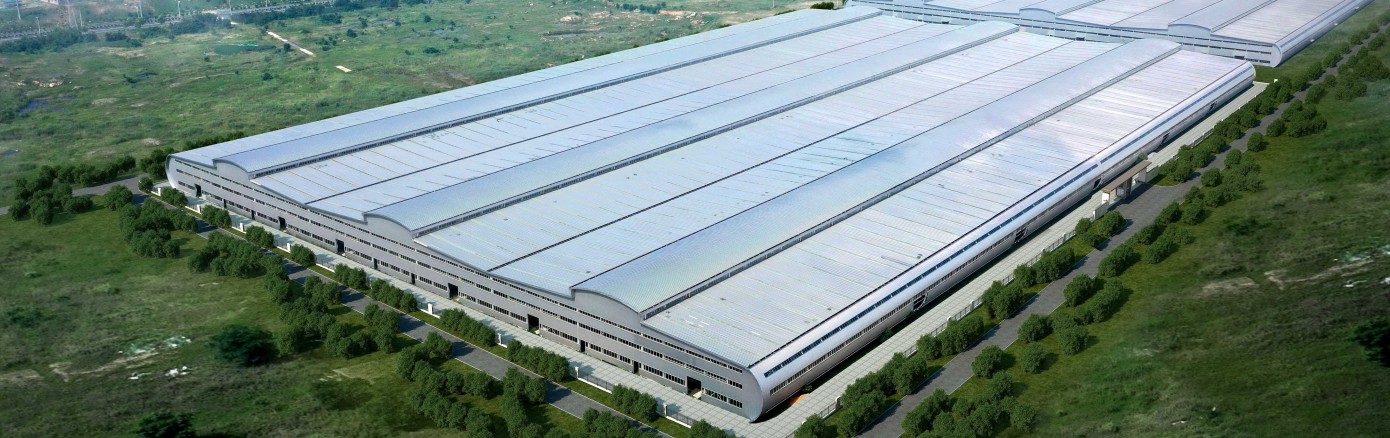

白米东方巴士汽车科技(威海)有限公司成立于2023年,位于山东省威海市荣成市兴隆路,是一家专注于新能源汽车整车及核心零部件研发、生产、销售的创新型企业。公司现有员工近500人,其中汇聚了70位专业且高端的技术精英,为公司的快速发展提供了强大的人才保障。
Founded in 2023, BAIMI East Bus Technology (Weihai) Co., Ltd is situated at Xinglong Road, Rongcheng City, Weihai City, Shandong Province and focuses on the research, development, production and sales of the whole vehicle and core components of new energy automobile an innovative enterprise. There has been nearly 500 employees in the company which converges 70 professional and high-end technical elites to furnish powerful talent security for rapid development of company.
公司高度重视创新能力的提升,积极构建产学研一体化合作体系,与齐鲁工业大学、哈尔滨理工大学、山东交通学院等高校建立紧密合作关系,组建了多学科的研发团队持续推动新能源汽车技术的创新升级。公司在强化国内产学研合作的同时也积极拓展国际合作版图,成功牵手德国戴姆勒集团、瑞典皇家科学院、瑞士肯联铝业、美国Designline集团等国际汽车行业翘楚。通过与这些全球知名的汽车集团深度合作,公司能够及时掌握行业最新动态,共享前沿技术、行业实践经验以及全球市场资源,共同推进新能源汽车领域的技术创新与应用。
The company attaches great importance to the improvement of innovation ability, actively constructs the industry-university-research integration cooperation system by establishing close cooperative relationship with Qilu University of Technology, Harbin University of Science and Technology, Shandong Jiaotong University, etc. to form multidisciplinary R&D team for sustained proportion of innovation and upgrade of new energy automobile technology. Exploiting international cooperation when intensifying domestic industry-universityresearch cooperation, the company has smoothly cooperated with international automobile industry leaders, such as Daimler AG, Royal Swedish Academy of Sciences, Swiss Constellium, Designline Group, USA, etc. We can promptly master the latest industry trend, share the cutting-edge technology, and industrial practical experience and global market resources by deeply cooperating with these global renewed automobile groups to jointly promote the technical innovation and application in the field of new energy automobile.
公司通过自主开发的新能源汽车产品线覆盖纯电动大巴、中巴、城市公交、高端物流车、皮卡、微卡、微面等多个细分领域,全部采用全铝车身、复合材料车身以及不锈钢底盘工艺,实现了车辆的轻量化、高效率与长续航,具备显著的市场竞争优势。白米东方巴士汽车科技(威海)有限公司作为一家新兴的新能源汽车领军企业,凭借强大的人才团队、紧密的产学研合作网络、广泛的国际战略伙伴以及技术领先的全系列新能源汽车产品,在国际舞台上崭露头角,成为推动绿色出行产业发展的生力军。随着公司持续加大研发投入、深化国际合作、优化产品结构,未来有望在全球新能源汽车市场上取得更加辉煌的业绩。
Its self-developed new energy automobile group product line covers many segments including pure electric bus, midibus, urban public transport, high-end logistics vehicles, pickup truck, mini truck, minivan, etc. and its automobile adopts all-aluminum body, composite body and stainless steel chassis.to achieve light weight, high efficiency and long duration of vehicle. All of them demonstrate our significant market competitive advantages. Baimi Oriental Bus Automobile Technology (Weihai) Co., Ltd. an emerging new energy vehicle leader stands out at international stage by virtue of powerful talent team, close industry-university-research cooperative network, extensive international strategic partners, full range of technologically advanced new energy vehicle products, and develops into fresh troop to promote development of green travel industry. As the company continuously increases the R&D injection, deepens international cooperation and optimizes product structure, we are expected to attain more brilliant performance on global new energy automobile market in the future.

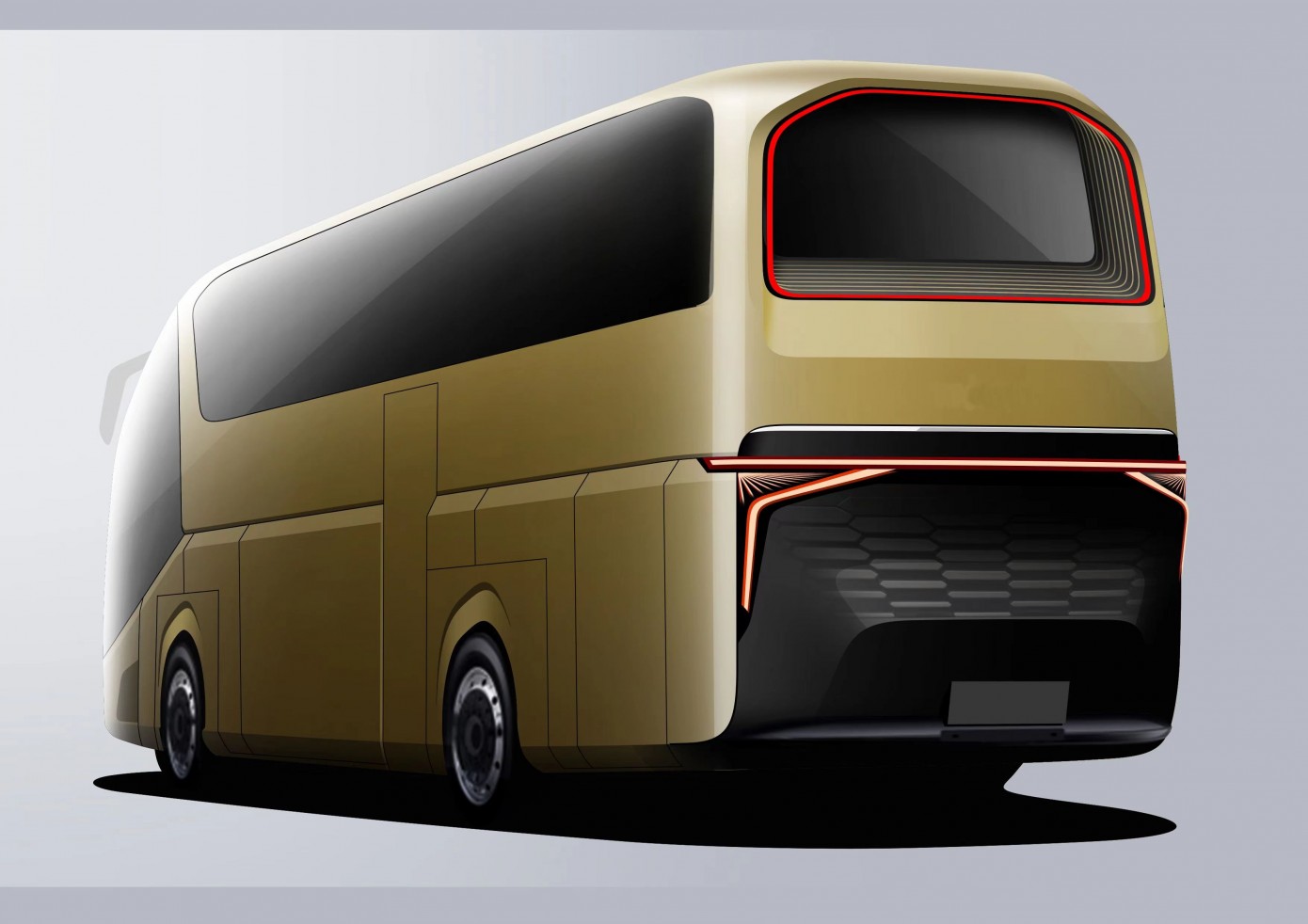

基本参数 Basic Parameters | 长x宽x高(mm) | Length*Width*Height | 12000*2550*3850 |
轴距 | Wheelbase | 5600 | |
前/后轮距(mm) | Front/Rear Track Width | 2068/1860 | |
乘员数(人) | Number Of Passengers/Seat | 51 | |
整车性能参数 Vehicle Performance Parameters | 续航里程(km) | Range Of Endurance | ≥500 |
最高车速(Km/h) | Maximum Speed | 120 | |
最小离地间隙(mm) | Minimum Ground Clearance | 180 | |
最小转弯直径(m) | Maximum Total Mass | <24 | |
最大爬坡度 | Maximum Climbing Gradient | 20% | |
30km/h制动距离(满载)(m) | 30km/h Braking Distance (Full Load) | ≤9 | |
底盘系统 Chassis System | 悬架 | Suspension | 前2后4空气悬架 Front 2 Rear 4 Air Suspension |
轮胎 | Tyre | 295/80R22.5、16PR | |
转向 | Steering System | 电动液压助力 Electric Hydraulic Power | |
制动 | Braking System | 双回路气压制动 Double Circuit Air Brake |

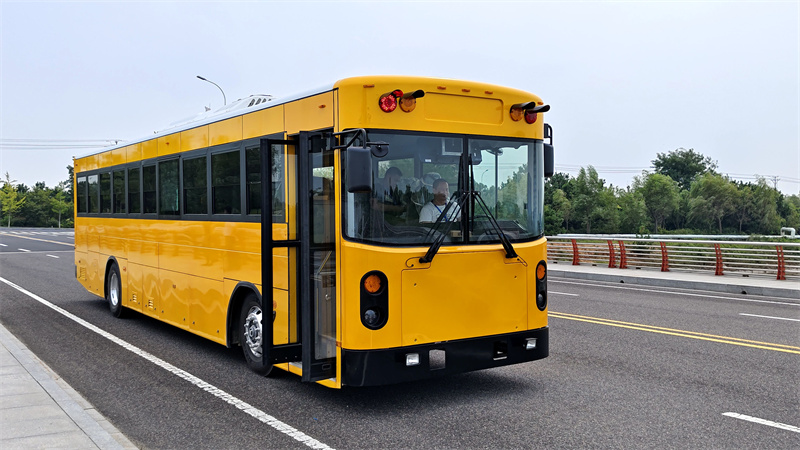

基本参数 Basic Parameters | 长*宽*高(mm) | Length*Width*Height | 12200mm*2560mm*3550mm |
轴距(mm) | Wheelbase | 6250mm | |
前/后轮距(mm) | Front/Rear Track Width | 2068mm/1888mm | |
乘员数(人) | Number Of Passengers | 81+1 | |
整车性能参数 Vehicle Performance Parameters | 续航里程(km) | Range Of Endurance | 200 |
最高车速(km/h) | Maximum Speed | 80 | |
最小转弯直径(m) | Minimum Turning Diameter | ≤12 | |
最小离地间隙(mm) | Minimum Ground Clearance | 145mm | |
最大爬坡度(%) | Maximum Climbing Gradient | 17% | |
30km/h制动距离(满载)(m) | 30km/h Braking Distance (Full Load) | ≤10 | |
底盘系统 Chassis System | 悬架 | Suspension | 空气悬架 Air Suspension |
轮胎 | Tyre | 275/70R22.5 | |
转向 | Steering System | 液压助力 Hydraulic Power Assist | |
制动 | Braking System | 双回路气制动 Dual Circuit Air Brake |

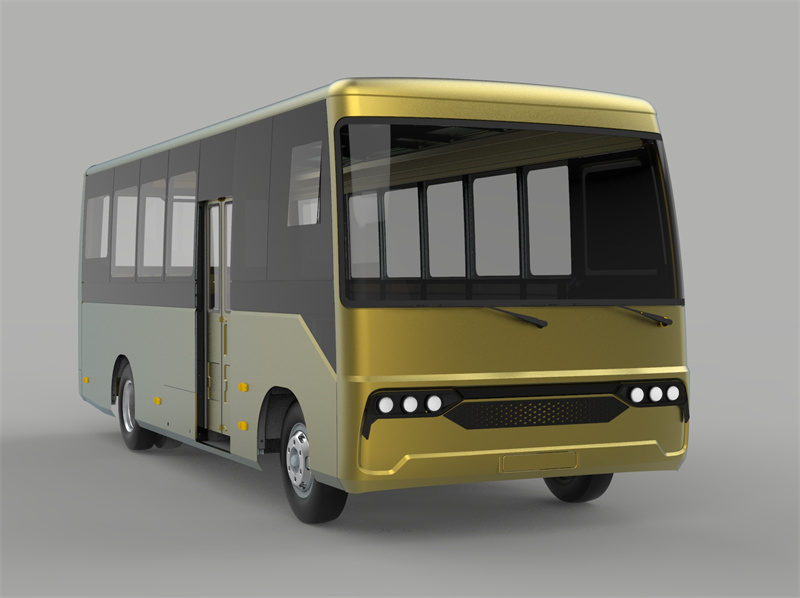

基本参数 Basic Parameters | 长x宽x高(mm) | Length*Width*Height | 6990×2280×2600 |
轴距 | Wheelbase | 3935 | |
乘员数(人)/座位 | Number Of Passengers/Seat | 26+1 | |
最大总质量(kg) | Maximum Total Mass | 8000 | |
载质量(kg) | Carrying Mass | 4000 | |
发动机 | Engine | 全柴 Q23-132E60 All Firewood Q23-132E60 | |
变速箱 | Gearbox | 万里扬6速变速箱 Wan Liyang 6-Speed Gearbox | |
排放标准 | Emission Standards | 欧 IV European Standards IV | |
排量(L) | Displacement | 2.776 | |
综合燃料消耗量(l/100km) | Combined Fuel Consumption | 9.8/9.0 | |
燃油箱容积 | Fuel Tank Volume | 120 | |
整车性能参数 Vehicle Performance Parameters | 最高车速(Km/h) | Maximum Speed | 100/118 |
额定功率/转速(kW/rpm) | Rated Power/Speed | 110/3200 | |
最大扭矩转速(N.m/rpm) | Maximum Torque Speed | 360/1800-2700 |

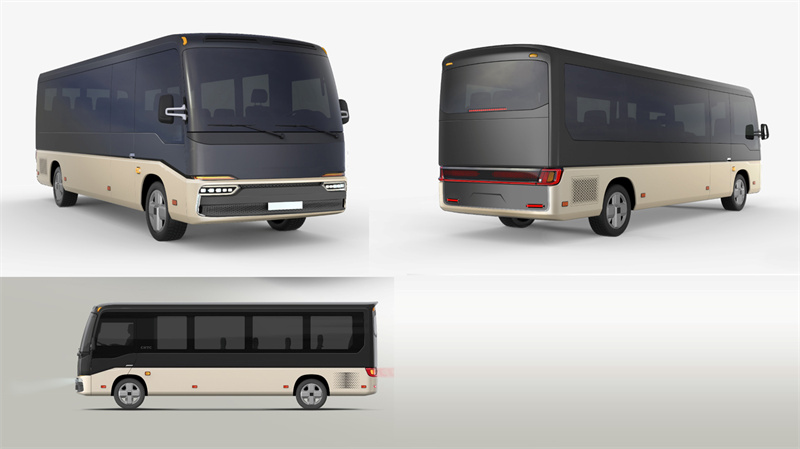

基本参数 Basic Parameters | 长x宽x高(mm) | Length*Width*Height | 6990X2280X2600 |
轴距 | Wheelbase | 3935 | |
乘员数(人)/座位 | Number Of Passengers/Seat | 26+1 | |
最大总质量(kg) | Maximum Total Mass | 8000 | |
载质量(kg) | Carrying Mass | 4000 | |
发动机 | Engine | 全柴 Q23-132E60 All FirewoodQ23-132E60 | |
变速箱 | Gearbox | 万里扬6速变速箱 Wan Liyang 6-Speed Gearbox | |
排放标准 | Emission Standards | 欧 IV European Standards IV | |
排量(L) | Displacement | 2.776 | |
综合燃料消耗量(l/100km) | Combined Fuel Consumption | 9.8/9.0 | |
燃油箱容积 | Fuel Tank Volume | 120 | |
整车性能参数 Vehicle Performance Parameters | 最高车速(Km/h) | Maximun Speed | 100/118 |
额定功率/转速(kW/rpm) | Rated Power/Speed | 110/3200 | |
最大扭矩转速(N.m/rpm) | Maximum Torque Speed | 360/1800-2700 |

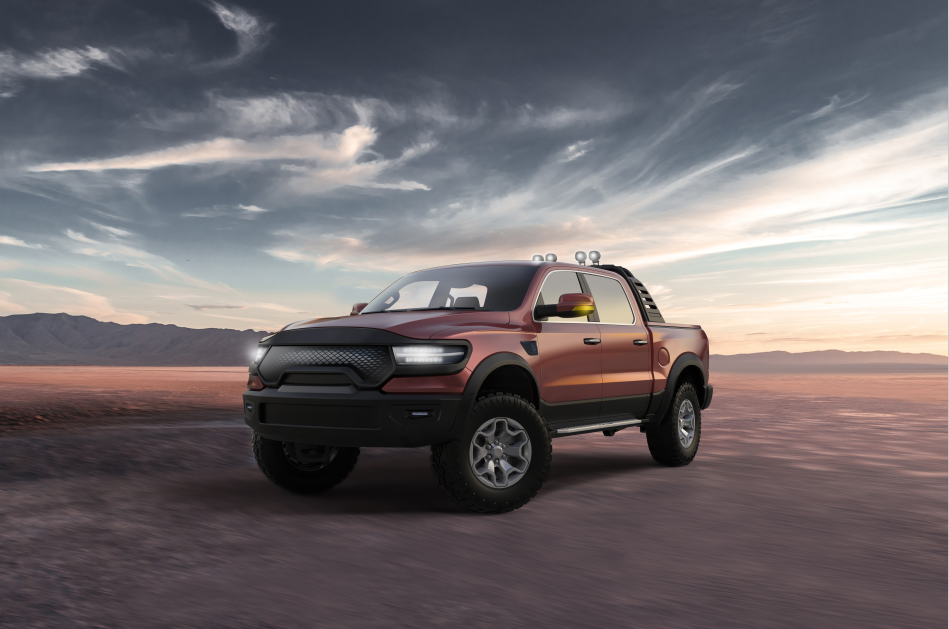

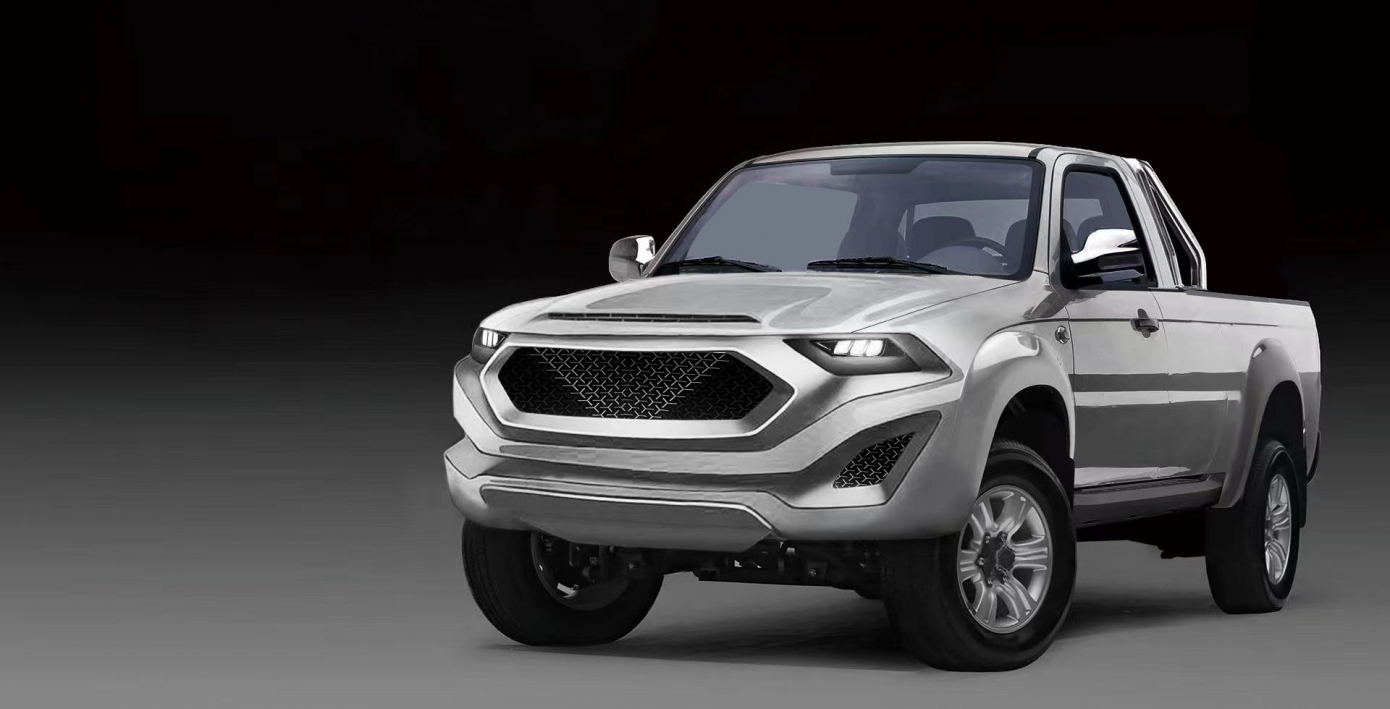

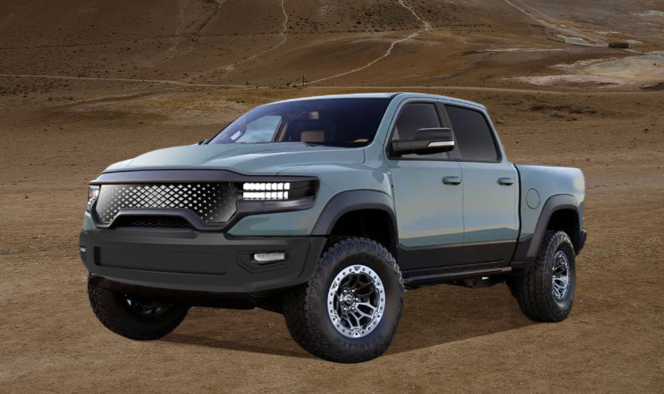

基本参数 Basic Parameters | 长x宽x高(mm) | Length*Width*Height | 5341*1880*1885 |
轴距 | Wheelbase | 3230 | |
前/后轮距(mm) | Front/rear Track width | 1532/1537 | |
乘员数(人) | Number of passengers/seat | 2+3/2 | |
整车性能参数 Vehicle Performance Parameters | 续航里程(km) | Range of endurance | 600 |
最高车速(Km/h) | Maximum speed | 110 | |
最小离地间隙(mm) | Minimum ground clearance | ≥200 | |
最小转弯直径(m) | Maximum total mass | ≤13.5 | |
最大爬坡度 | Maximum climbing gradient | 20 | |
底盘系统 Chassis System | 悬架 | Suspension | 非对称板簧 Asymmetrical leaf spring |
轮胎 | Tyre | 265/65R17 | |
转向 | Steering Syste | EPS | |
制动 | Braking System | 前蝶/后鼓 Front butterfly/Back drum |
基本参数 Basic Parameters | 长x宽x高(mm) | Length*Width*Height | 5341*1880*1885 |
轴距 | Wheelbase | 3230 | |
前/后轮距(mm) | Front/Rear Track width | 1532/1537 | |
乘员数(人) | Number Of Passengers/Seat | 2+3/2 | |
整车性能参数 Vehicle Performance Parameters | 续航里程(km) | Range Of Endurance | 600 |
最高车速(Km/h) | Maximum Speed | 110 | |
最小离地间隙(mm) | Minimum Ground Clearance | ≥200 | |
最小转弯直径(m) | Maximum Total Mass | ≤13.5 | |
最大爬坡度 | Maximum Climbing Gradient | 20 | |
底盘系统 Chassis System | 悬架 | Suspension | 非对称板簧 Asymmetrical Leaf Spring |
轮胎 | Tyre | 265/65R17 | |
转向 | Steering System | EPS | |
制动 | Braking System | 前蝶/后鼓 Front Butterfly/Back Drum |

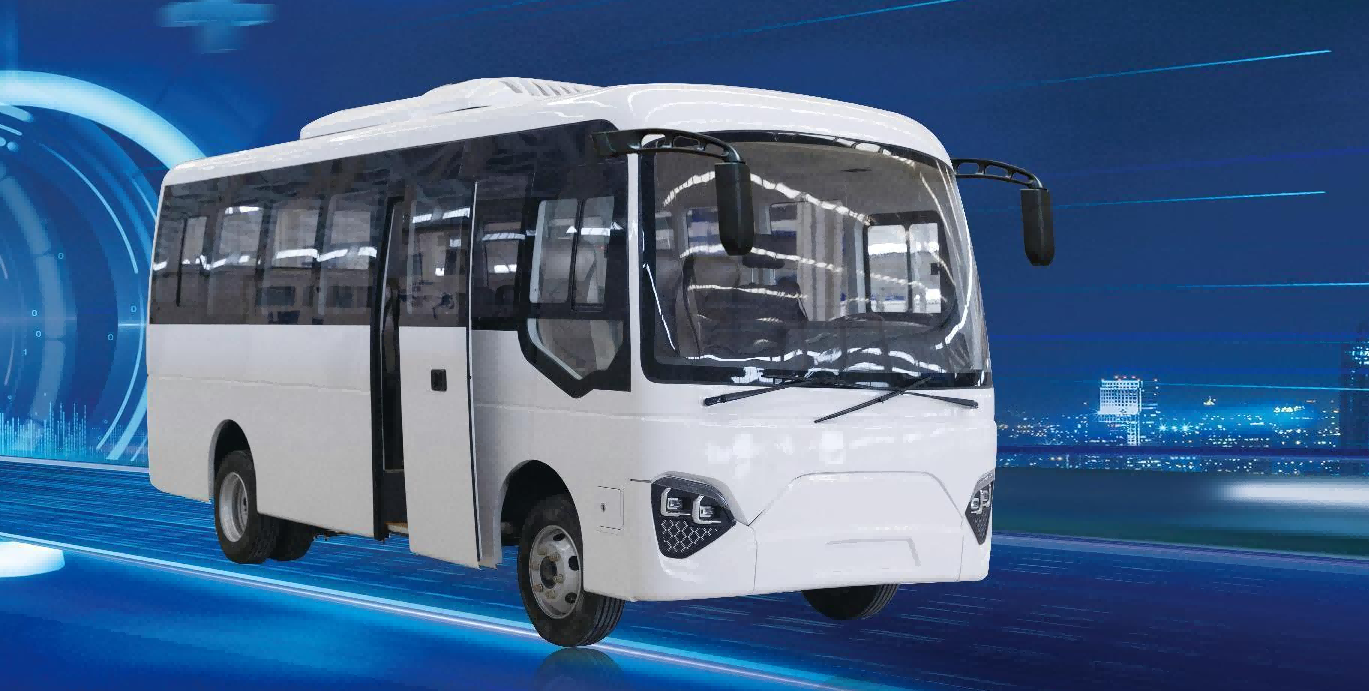

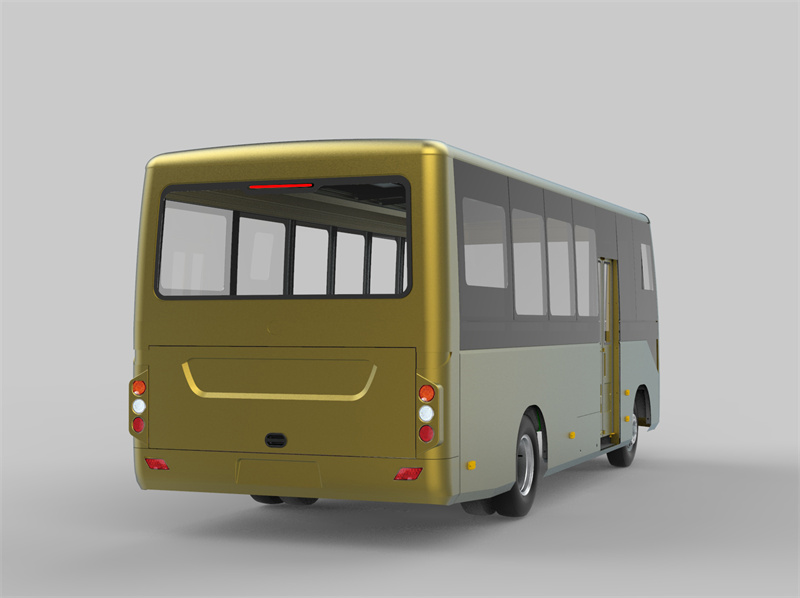

基本参数 Basic parameters | 长*宽*高(mm) | Length*Width*Height | 7005mm*2260mm*2920 |
轴距(mm) | wheelbase | 3935 | |
前/后轮距(mm) | Front/rear Track width | 1850/1630 | |
乘员数(人)/座位 | Number of passengers/seat | 16-28 | |
整车性能参数 Vehicle Performance Parameters | 续航里程(km) | Range of endurance | ≥250 |
最高车速(km/h) | Maximum speed | 80 | |
最小离地间隙(mm) | Minimum ground clearance | ≥180 | |
最小转弯半径(m) | Maximum total mass | ≤6.5 | |
最大爬坡度(%) | Maximum climbing gradient | ≥18 | |
30km/h制动距离(满载)(m) | 30km/h braking distance (full load) | ≤10 | |
底盘系统 Chassis System | 悬架 | suspension | 板簧 Leaf spring |
轮胎 | tyre | 215/75R17.5 | |
转向 | steering system | 液压助力 Hydraulic power assist | |
制动 | braking system | 双回路气制动 Dual circuit air brake |

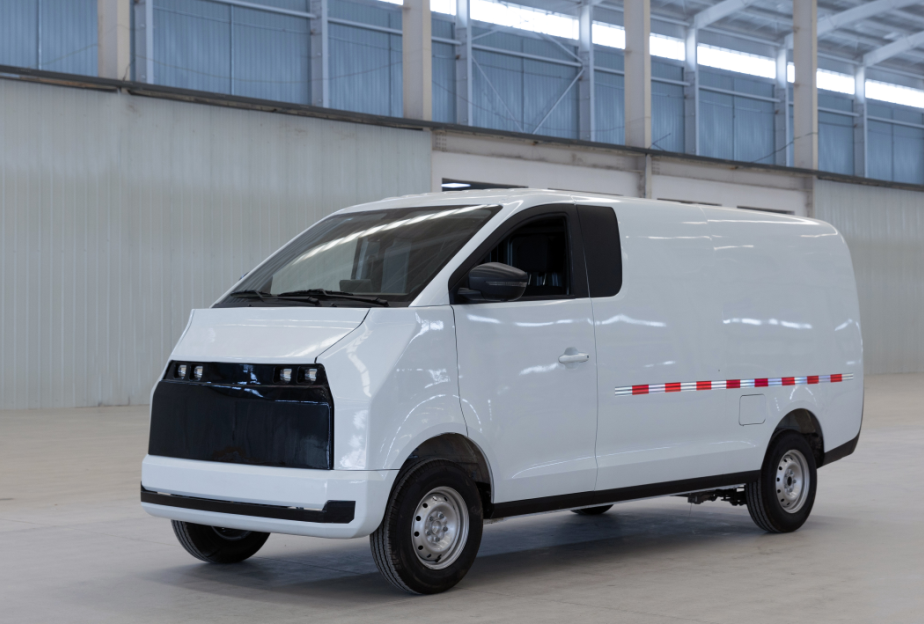

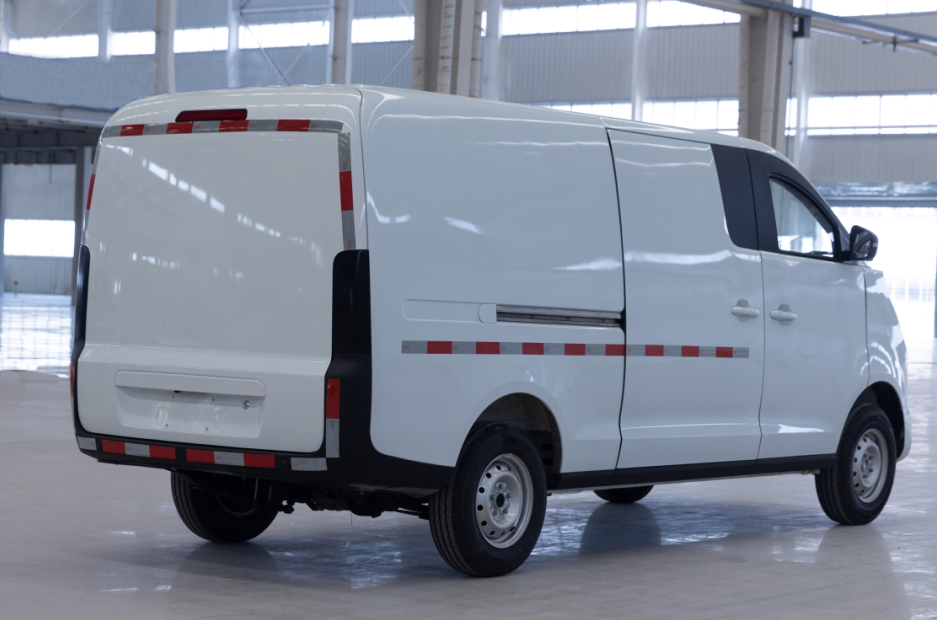

基本参数 Basic Parameters | 长*宽*高(mm) | Length*Width*Height | 4860*1750*1990 |
货箱尺寸(mm) | Wheelbase | 2827*1525*1381 | |
货箱容积(mm) | Front/Rear Track Width | 6.0 | |
乘员数(人)/座位 | Number Of Passengers/Seat | 2 | |
整车性能参数 Vehicle Performance Parameters | 续航里程(km) | Range Of Endurance | ≥300 |
最高车速(km/h) | Maximum Speed | 100 | |
最小离地间隙(mm) | Minimum Ground Clearance | ≥190 | |
电池类型 | Maximum Total Mass | 磷酸铁锂 Lithium Iron Phosphate | |
电机额定功率(KW) | Rated Power Of Motor | 32 | |
电机峰值功率(KW) | Peak Power Of Motor | 60 | |
整备质量(kg) | Curb Weight | 1495 | |
额定载质量(kg) | Rated Load Capacity | 1375 |
